Product Details

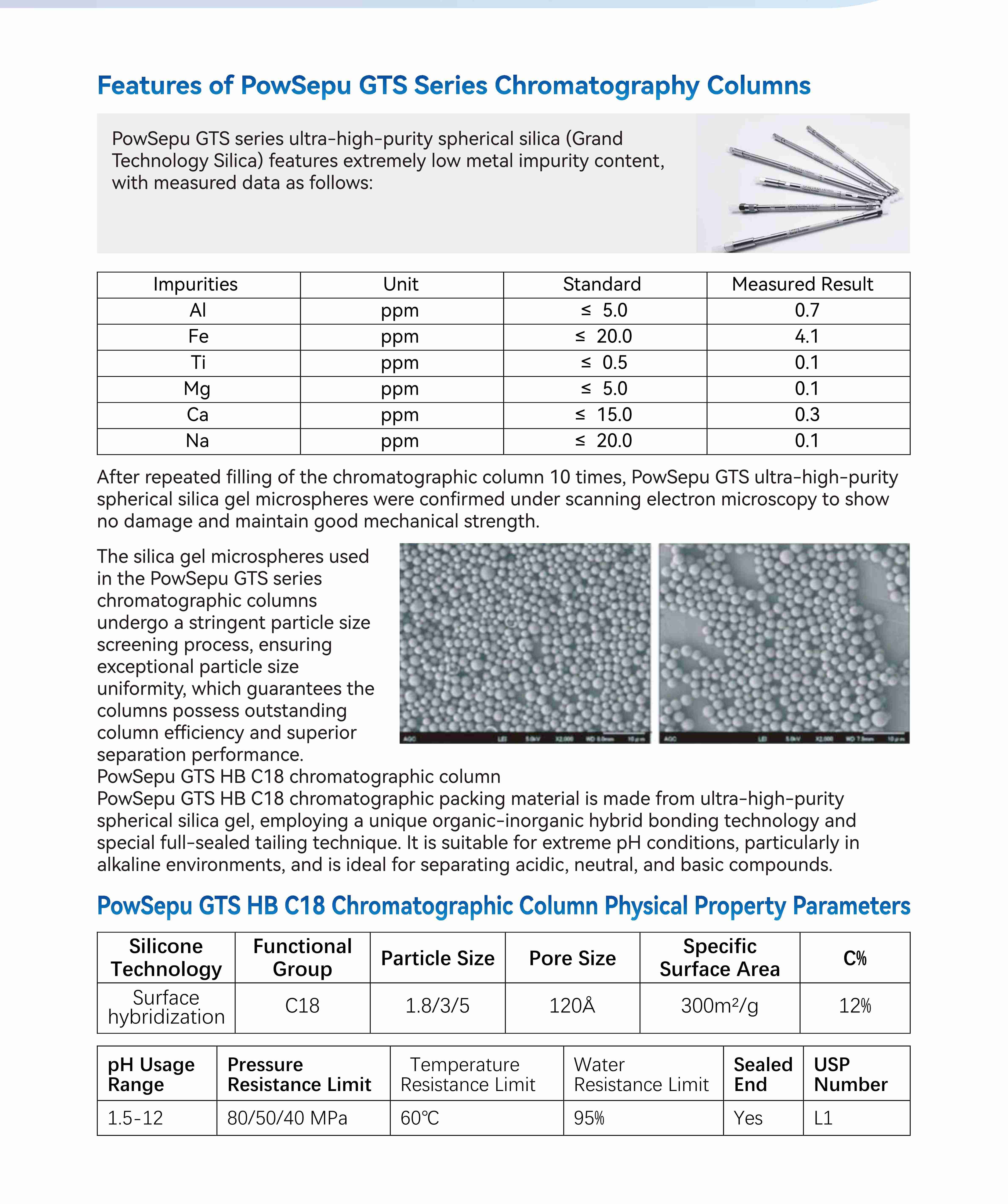

Features of PowSepu GTS Series Chromatography Columns
PowSepu GTS series ultra-high-purity spherical silica (Grand Technology Silica) features extremely low metal impurity content, with measured data as follows:
|
Impurities |
Unit |
Standard |
Measured Result |
|
Al |
ppm |
≤5.0 |
0.7 |
|
Fe |
ppm |
≤20.0 |
4.1 |
|
Ti |
ppm |
≤0.5 |
0.1 |
|
Mg |
ppm |
≤5.0 |
0.1 |
|
Ca |
ppm |
≤15.0 |
0.3 |
|
Na |
ppm |
≤20.0 |
0.1 |
After repeated filling of the chromatographic column 10 times, PowSepu GTS ultra-high-purity spherical silica gel microspheres were confirmed under scanning electron microscopy to show no damage and maintain good mechanical strength.
The silica gel microspheres used in the PowSepu GTS series chromatographic columns undergo a stringent particle size screening process, ensuring exceptional particle size uniformity, which guarantees the columns possess outstanding column efficiency and superior separation performance.
PowSepu GTS HB C18 chromatographic column
PowSepu GTS HB C18 chromatographic packing material is made from ultra-high-purity spherical silica gel, employing a unique organic-inorganic hybrid bonding technology and special full-sealed tailing technique. It is suitable for extreme pH conditions, particularly in alkaline environments, and is ideal for separating acidic, neutral, and basic compounds.
PowSepu GTS HB C18 Chromatographic Column Physical Property Parameters
|
Silicone Technology |
Functional Group |
Particle Size |
Pore Size |
Specific Surface Area |
C% |
|
Surface hybridization |
C18 |
1.8/3/5 |
120Å |
300m²/g |
12% |
|
pH Usage Range |
Pressure Resistance Limit |
Temperature Resistance Limit |
Water Resistance Limit |
Sealed End |
USP Number |
|
1.5-12 |
80/50/40 MPa |
60℃ |
95% |
Yes |
L1 |

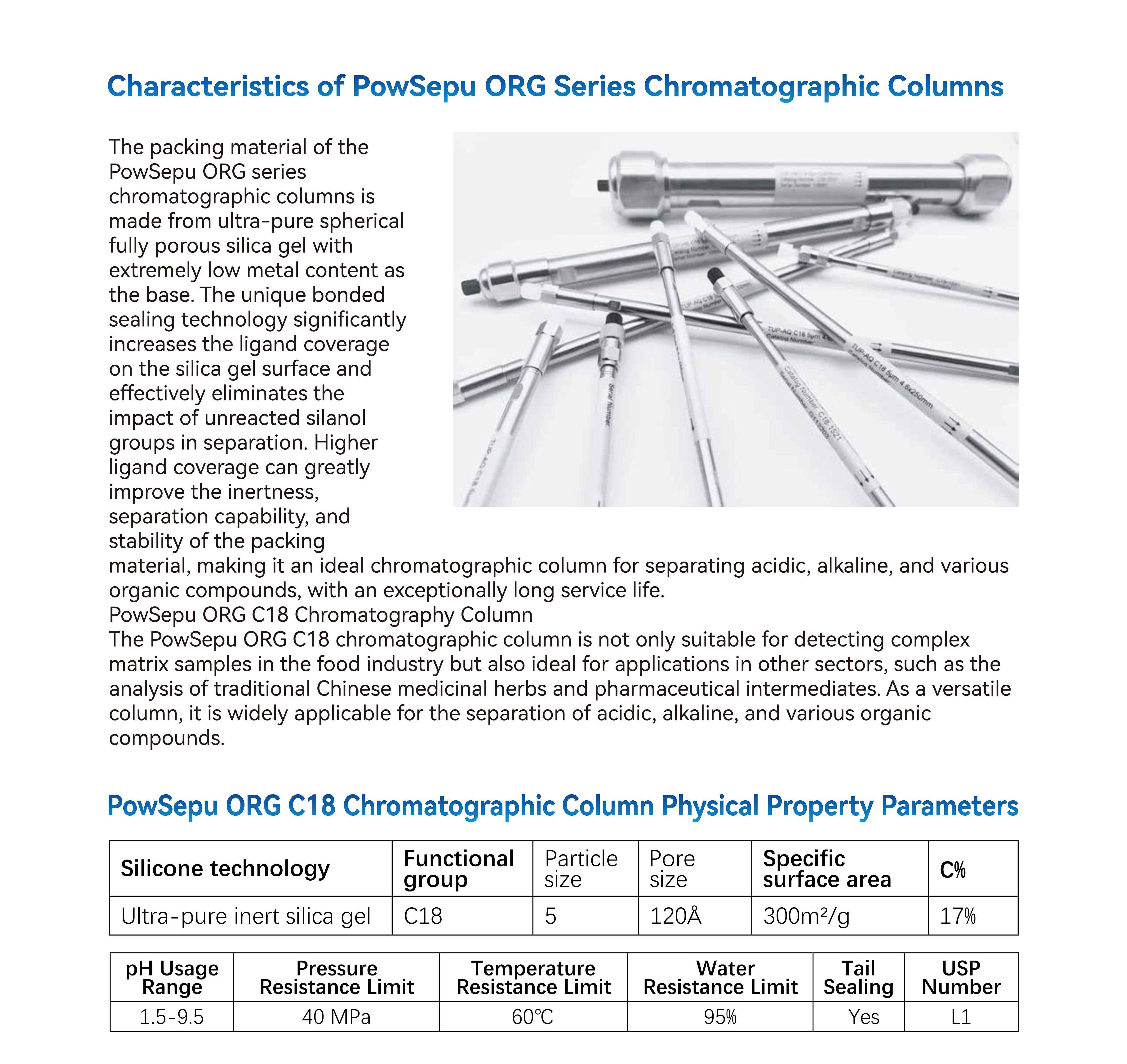

Characteristics of PowSepu ORG Series Chromatographic Columns
The packing material of the PowSepu ORG series chromatographic columns is made from ultra-pure spherical fully porous silica gel with extremely low metal content as the base. The unique bonded sealing technology significantly increases the ligand coverage on the silica gel surface and effectively eliminates the impact of unreacted silanol groups in separation. Higher ligand coverage can greatly improve the inertness, separation capability, and stability of the packing material, making it an ideal chromatographic column for separating acidic, alkaline, and various organic compounds, with an exceptionally long service life.
PowSepu ORG C18 Chromatography Column
The PowSepu ORG C18 chromatographic column is not only suitable for detecting complex matrix samples in the food industry but also ideal for applications in other sectors, such as the analysis of traditional Chinese medicinal herbs and pharmaceutical intermediates. As a versatile column, it is widely applicable for the separation of acidic, alkaline, and various organic compounds.
PowSepu ORG C18 Chromatographic Column Physical Property Parameters
|
Silicone technology |
Functional group |
Particle size |
Pore size |
Specific surface area |
C% |
|
Ultra-pure inert silica gel |
C18 |
5 |
120Å |
300m²/g |
17% |
|
pH Usage Range |
Pressure Resistance Limit |
Temperature Resistance Limit |
Water Resistance Limit |
Tail Sealing |
USP Number |
|
1.5-9.5 |
40 MPa |
60℃ |
95% |
Yes |
L1 |
